3363 0886 17 CASQUILLO DESGASTE HB5800 ATLAS COPCO

By engineeringparts / December 8, 2025

CASQUILLO DESGASTE HB5800 ATLAS COPCO

Casquillo de desgaste para martillo Atlas Copco, con referencia Atlas Copco 3363 0886 17

Optimiza el rendimiento de tu rompedor hidráulico con nuestro casquillo de desgaste HB5800, fabricado con materiales de alta resistencia y tolerancias precisas para garantizar máxima durabilidad en trabajos de demolición pesada.

Especificaciones Técnicas:

• Longitud: 260 mm
• Diameter Exterior: 262 mm
• Diámetro del Fondo: 262 mm
• Diámetro Puntero: 200 mm
• Peso: 44 kg

Compatible con Atlas Copco HB5800, producido según estándares OEM y diseñado para asegurar un ajuste perfecto y una vida útil prolongada.

Main Assembly Components

• Hydraulic breaker HB 5800 – 3363 0904 73
• Hydraulic breaker HB 5800 DustProtector – 3363 0904 75
• Percussion unit – 3363 0904 71
• Breaker box (HB 5800) – 3363 1104 16
• Breaker box (HB 5800 DustProtector) – 3363 1104 15
• Lifting eye – 3363 1119 92

---

 Individual Spare Parts

Structure & Mounting

• Elastic pad – 3363 0860 37
• Shock absorber – 3363 0860 39
• Guide plate – 3363 0860 41
• Guide plate – 3362 2652 15
• Guide plate – 3362 2626 67
• Plate – 3363 0933 85
• Plate – 3363 0988 35
• Plate – 3363 1104 17
• Plate – 3363 0988 41
• Cover – 3363 0311 81
• Plug – 3363 0860 17
• Swivel joint cover – 3363 1114 62
• Swivel joint cover – 3363 1116 96

Fasteners & Hardware

• Allen screw (various types):
  • 3360 1141 51
  • 3360 1037 68
  • 3360 1037 50
  • 3360 1037 51
  • 3360 0267 84
  • 3360 0265 13
  • 3363 0949 02
• Pair of lock washers:
  • 3361 3337 03
  • 3361 8505 96
  • 3363 1112 96
• Nut – 3360 1032 55
• Bolt – 3363 0886 21
• Retainer bar – 3363 0886 23
• Tensioning bolt – 3363 0886 11
• Washer – 3363 0936 49
• Washer – 3361 8507 48
• Washer – 3363 0922 53
• Locking bush – 3361 8543 63
• Locking bush – 3362 2604 33
• Threaded insert:
  • 3363 0899 16
  • 3361 0315 29
  • 3363 0853 79
• Expansion bolt – 3361 8515 91
• Plug – 3362 2604 35
• Plug – 3363 0825 93
• Plug – 3363 0669 63
• Plug – 3363 0860 99
• Protective cap – 3363 0856 97

Percussion Unit – Cylinder Cover Section

• Cylinder cover – 3363 0875 81
• Main control valve – 3363 0886 33
• Cover – 3363 0865 15
• Frequency switching valve (AutoControl) – 3363 0354 53
• HP-accumulator – 3363 0695 87
• Non-return valve – 3361 8545 11
• Safety valve (PowerAdapt) – 3363 0852 70
• Threaded plug:
  • 3363 0354 25
  • 3363 0870 86
  • 3363 0870 87
  • 3361 8441 15
• Adapter – 3363 0977 59
• Strainer disk – 3361 8441 13
• Filling valve complete – 3363 0872 86
• Filling valve – (no individual PN listed)
• Threaded plug – 3360 4784 26

Swivel Joint Components

• Swivel joint complete – 3363 0865 71
• Adapter complete – 3363 1034 70
• Adapter – 3363 0865 69
• Adapter – 3361 3566 43
• Disk – 3361 3566 45
• Cap – 3363 0837 49
• Cap – 3361 3534 89
• Snapring – 3363 1031 33

Percussion Unit – Cylinder Section

• Seal bush – 3363 0886 13
• Ring – 3363 0977 97
• Cylinder – 3363 0875 78
• Percussion piston – 3363 0875 73
• Lock pin – 3360 1068 18
• Plug – 3363 0825 93
• Valve piston – 3363 0825 05
• O-ring – 3363 0832 45

Lower Breaker Part

• Lower breaker part complete – 3363 0949 98
• Impact ring – 3363 0886 15
• Wear bush (steel) – 3363 0886 47
• Wear bush (bronze) – 3363 0886 41

DustProtector Specific Parts

• Floating ring – 3363 0877 02
• Counter ring – 3363 0356 43
• Guide ring – 3363 0356 39
• Bolt – 3363 0877 03
• Base for wiper – 3363 0886 43
• Wiper – 3363 0877 01

ContiLube® II System

• ContiLube® II – 3363 0671 23
• Connecting kit for ContiLube® II – 3363 0875 82
• Adapter – 3363 0668 87
• Fitting – 3363 0662 33
• Hydraulic hose (grease line) – 3363 0875 83
• Adapter – 3363 0687 45
• Fitting – 3363 0662 34
• Hydraulic hose (oil line) – 3363 0838 77
• Seal – 3363 0669 51
• Support – 3363 0689 37
• Fitting – 3363 0871 85
• Fitting – 3363 0871 86

StartSelect – AutoStart/AutoStop

• Plug – 3363 0825 93
• Valve (StartSelect) – 3363 0825 05

---

 Kits

Seal & Component Kits

• Seal kit – 3363 0875 91
• Seal kit for swivel joint (ContiLube® II) – 3363 0917 32
• Plastic parts kit – 3363 0878 07
• Tensioning bolt kit – 3363 0943 54
• DustProtector kit – 3363 0943 90
• Noise protection kit – 3363 0980 64
• Expansion bolt kit – 3363 1034 87
• Accumulator repair kit – 3363 0898 50

Lower Breaker Part Kits

• Lower breaker part kit (steel) – 3363 1034 10
• Lower breaker part kit (bronze) – 3363 0943 79
• Lower breaker part kit DustProtector (steel) – 3363 1034 11
• Lower breaker part kit DustProtector (bronze) – 3363 0943 80

Label Kits

• Label kit HB 5800 – 3363 0943 19
• Label kit HB 5800 DustProtector – 3363 0943 20

---

 O-Rings, Seals & Back-up Rings (with part numbers)

• O-ring – 3360 3143 76
• O-ring – 3360 3143 70
• O-ring – 3360 3143 64
• Back-up ring – 3360 3280 46
• O-ring – 3360 3144 94
• O-ring – 3360 4781 71
• Back-up ring – 3363 0870 85
• O-ring – 3363 1104 01
• O-ring – 3361 8462 82
• Back-up ring – 3361 8462 81
• Threaded plug – 3360 4784 26
• O-ring – 3360 1751 25
• Seal – 3363 1034 18
• Seal – 3363 0981 37
• Seal kit – 3363 0875 92
• Back-up ring – 3363 0877 05
• Seal – 3363 0877 04
• O-ring – 3361 0319 88
• Seal – 3362 2675 83
• Seal – 3362 2675 90
• O-ring – 3360 3144 53
• Wiper – 3363 0877 11
• Seal kit – 3363 0875 93
• Seal – 3363 0877 09
• Back-up ring – 3363 0877 10
• O-ring – 3363 0879 59
• O-ring – 3360 3144 60
• Diaphragm – 3361 3290 22
• Filling screw – 3360 3322 59
• Protective cap – 3361 3350 25

---

 Accessories & Optional Equipment

• Chisel paste for ContiLube® II – 3363 0912 00
• Grease gun for cartridge – 3363 0345 67
• Grease nipple – 3360 4337 74
• Service box no. II with nitrogen cylinder – 3363 0898 45
• Service box no. III without nitrogen cylinder – 3363 0949 40
• Test gauge lower wear bush – 3363 0889 97
• Inside callipers upper wear bush – 3363 0949 52
• Base plate with threaded inserts – 3363 0997 91
• Bolt kit – 3363 0873 05
• Base plate with through borings – 3363 1028 73
• Bolt kit – 3363 0945 77
• Allen key (27 mm) – 3360 4789 49
• Adapter kit for underwater applications – 3363 0905 31
• Piston retainer – 3363 0929 89

---

 Working Tools

Moil Point

• ClassicLine (665 mm / 26.18 in) – 3363 0879 22
• ClassicLine (865/810 mm / 34.06/31.89 in) – 3363 0875 27
• SilverLine (865/810 mm / 34.06/31.89 in) – 3363 0914 20

Chisel (Cross)

• ClassicLine (200 mm × 665/610 mm) – 3363 0875 24
• ClassicLine (200 mm × 865/810 mm) – 3363 0875 25
• SilverLine (200 mm × 865/810 mm) – 3363 0914 21

Chisel (Parallel)

• ClassicLine (200 mm × 665/610 mm) – 3363 0942 60
• ClassicLine (200 mm × 865/810 mm) – 3363 0942 61

Blunt Tool

• ClassicLine (665/610 mm) – 3363 0879 24
• ClassicLine (865/810 mm) – 3363 0875 28
• SilverLine (865/810 mm) – 3363 0914 22

---

 Hydraulic Hoses

• Feed line (I.D. 32 mm / 1¼”, 2800 mm) – 3361 8538 60
• Return line (I.D. 40 mm / 1½”, 2800 mm) – 3363 0835 63
• Feed line (3500 mm / 138 in) – 3361 8538 61
• Return line (3500 mm / 138 in) – 3363 0835 62

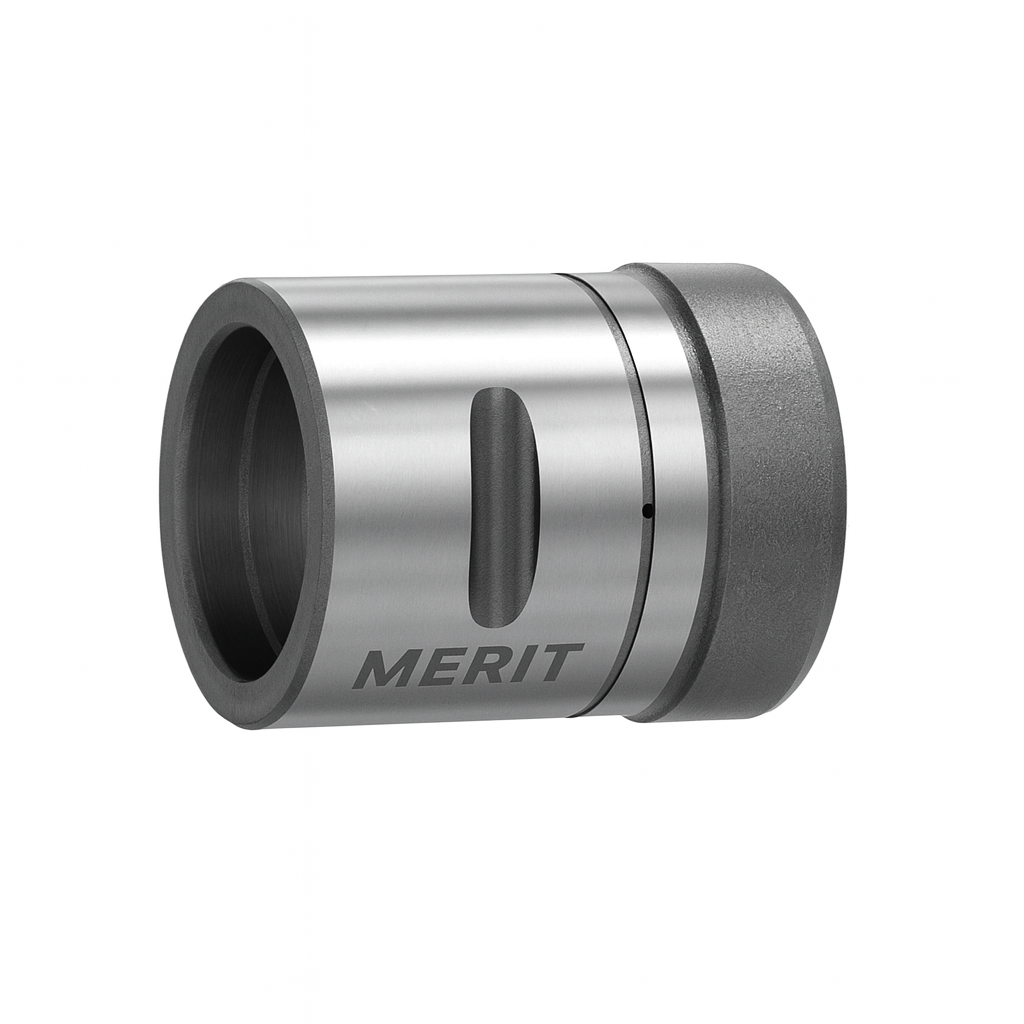

Sandvik Rammer Douille
