Guide Avant Compatible Avec 171140 Rammer 5011 BRH

By / November 24, 2025
Rammer 5011 BRH

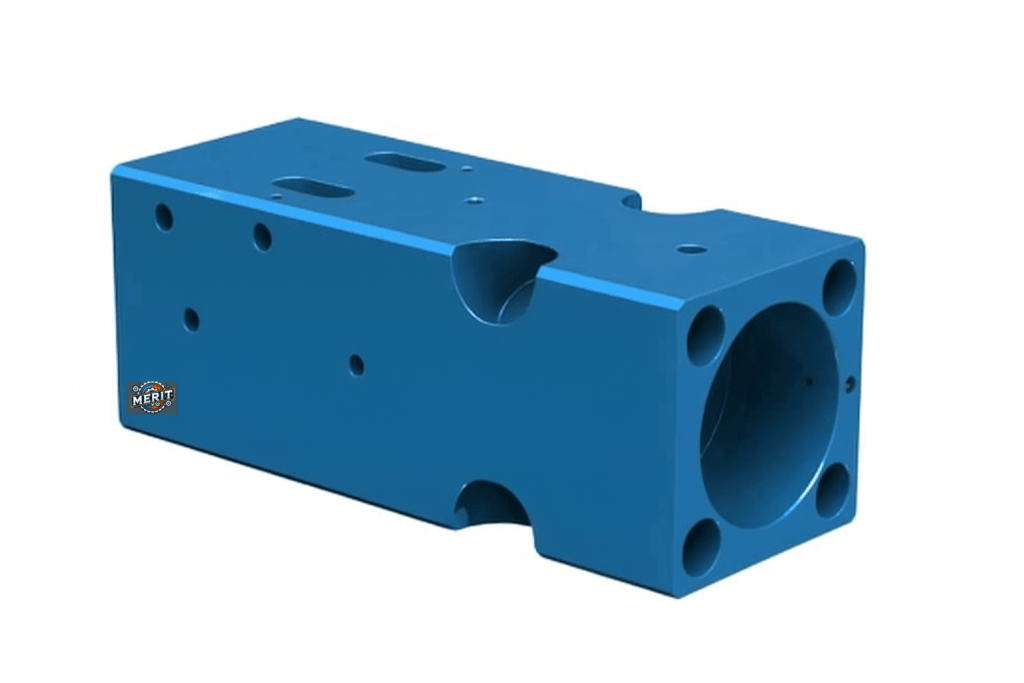

Guide Avant Compatible Avec 171140 Rammer 5011 BRH.
Vous recherchez un guide avant de haute qualité et fiable pour votre marteau hydraulique Rammer 5011 ? Nous avons exactement ce qu’il vous faut.
Ce guide avant équivalent OEM (référence 171140) est conçu pour respecter les spécifications d’origine et offre une durabilité exceptionnelle — parfait pour vos travaux intensifs de démolition ou de brise-roche.

Main Spare Parts

Part NameRammer 3288 Part No.Rammer 4099 Part No.Rammer 5011 Part No.
Buffer154317104137168232
Pad155438104068168228
Shield Plate163556105780168281
Plug157947157947168231
Seal153013160558168280
Wear Plate163355162525171044
Lower Bushing *155206160008171139
Ring153236160482168299
Tool Retaining Pin *153235160020168297
Bushing Retaining Pin155553160484168298
Rubber Plug104530160485168300
Membrane *173532172307173535
Seal Set *163428165464170948
Service Kit *K13288K14099K15011

Demolition Tools

Tool TypeRammer 3288 Part No.Rammer 4099 Part No.Rammer 5011 Part No.
Chisel Tool88199150111
Mail Point Tool88399350113
Blunt Tool88499450114
Pyramid Tool883K993K350113K3
Limestone Chisel Tool881F3991F350111A2
Hard Rock Chisel Tool881A3991A250111F3
Super Blunt Tool884T2994T250114T2

1. Housing Unit Heavy Duty

  • Housing – 168245
  • Pad – 168228
  • Buffer – 168232
  • Plug – 158147
  • Plug – 168231
  • Hex. screw – 90520
  • Washer – 90521
  • Lock nut – 90519
  • Shield plate – 168281
  • Wear plate – 171044
  • Plug – 400491
  • Lifting eye – 953942
  • Hex. screw – 953944
  • Seal – 168280
  • Plug – 953291
  • Wear parts – 171213
  • Label set (incl. safety label set) – 171102
  • Safety label set – 169400

2. Housing Unit Heavy Duty Primary Breaking

  • Housing – 172623
  • Pad – 168228
  • Buffer – 172586
  • Plug – 400491
  • Plug – 158147
  • Plug – 168231
  • Hex. screw – 90520
  • Washer – 90521
  • Lock nut – 90519
  • Buffer holder (incl. plates & screw) – 172114
  • Plate – 172157
  • Plate – 172391
  • Screw – 172390
  • Shield plate – 168281
  • Wear plate – 172652
  • Wear plate – 172651
  • Lifting eye – 953942
  • Hex. screw – 953944
  • Seal – 168280
  • Plug – 953291
  • Label set – 171102
  • Safety label set – 169400

3. Accumulator

  • Accumulator (incl. parts 1.1–1.9) – 168284
  • Accumulator bottom – 168285
  • Accumulator cover – 168287
  • Membrane – 168291
  • Accumulator screw – 168289
  • Filling plug – 40368
  • Shield plug – 154015
  • O-ring – 910006
  • Usit-ring – 90056
  • Parallel pin – 90304
  • Accumulator screw – 168591
  • Seal – 168563
  • O-ring – 90034

4. Main Valve

  • Main valve (incl. parts 10–14) – 168570
  • Main valve bushing – 168571
  • Main spool – 168574
  • Spool – 110986
  • Spool – 110781
  • Cover – 168572
  • Seal – 168596
  • O-ring – 910010
  • Hex. screw – 900036
  • Lock washer – 91010

5. Ramvalve

  • Ramvalve (incl. parts 1.1–1.10) – 172275
  • Cover – 170264
  • Restrictor valve housing – 172116
  • Spool – 171031
  • Spring – 954342
  • O-ring – 90035
  • O-ring – 94038
  • O-ring – 94048
  • Shim plate – 954349
  • Shim plate – 954348
  • Seal – 954341
  • Lock washer – 90597
  • Hex. screw – 91051

6. Pressure Control Valve

  • Pressure control valve (incl. parts 1.1–1.15) – 171132
  • Cover – 161974
  • Valve housing – 161982
  • Spool – 171131
  • Guide – 161976
  • Spool – 400582
  • O-ring – 90030
  • Spring – 90118
  • Seal – 41374
  • Spring guide – 161973
  • Shim plate – 42361
  • Shim plate – 42363
  • Shim plate – 42362
  • Seal – 40533
  • O-ring – 90015
  • Plug – 161981
  • Lock washer – 90597
  • Hex. screw – 91051

7. Idle Selector

  • Valve (incl. parts 1.1–1.4) – 163445
  • Cover – 156729
  • Spool – 163446
  • Seal – 112835
  • O-ring – 90001
  • Pin – 161414
  • Spring – 951797
  • Flange plug – 90444

8. Stroke Selector Valve

  • Valve (incl. parts 1.1–1.4) – 163445
  • Cover – 156729
  • Spool – 163446
  • Seal – 112835
  • O-ring – 90001
  • Pin – 161414
  • Spring – 951797
  • Flange plug – 90444

9. Tie Rods

  • Tie rod (incl. parts 1.3–1.4) – 168595
  • Vibration dampening element – 168588
  • Cable tie – 952009
  • Lock plate – 168589
  • Rubber ring – 168593

10. Body Parts

  • Valve body (incl. parts 1.2–1.6) – 168583
  • Flange plug – 90410
  • Flange plug – 90444
  • Flange plug – 90403
  • Nozzle – 159795
  • Breather – 400662
  • Cylinder – 168296
  • Piston – 168564
  • Seal carrier (incl. parts 4.2–4.6) – 168567
  • Breather (incl. O-ring) – 101700
  • O-ring – 901173
  • Plug – 155625
  • Flange plug – 90444
  • Nozzle – 170757
  • Flange plug – 93203
  • Wiper – 952370
  • Seal – 903066
  • Seal – 168260
  • Wiper – 953803
  • Seal – 953802
  • Seal – 953806
  • O-ring – 953810
  • O-ring – 94070
  • O-ring – 901124
  • Parallel pin – 904017
  • O-ring – 901117

11. Front Head

  • Front head (incl. parts 1.2–1.3) – 171140
  • Hex. socket screw – 900051
  • Lock washer – 953339
  • Thrust ring – 168283
  • O-ring – 954215
  • Upper tool bushing – 168295
  • Tool retaining pin – 168297
  • Ring – 168299
  • Wedge – 40110
  • O-ring – 90000
  • Retaining pin – 168298
  • Rubber plug – 168300

12. Lower Tool Bushing

  • Lower tool bushing – 171139

13. Tool

  • Chisel – 50111
  • Moil point – 50113
  • Blunt – 50114
  • Pyramid – 50113K3
  • Hard Rock Chisel – 50111A2
  • Limestone Chisel – 50111F3
  • Super Blunt – 50114T2

14. Seal Set

  • Seal set – 170948
  • O-ring – 94038
  • O-ring – 94048
  • Seal – 112835
  • O-ring – 90001
  • O-ring – 910006
  • Usit-ring – 90056
  • Seal – 168563
  • O-ring – 90034
  • Seal – 168596
  • O-ring – 910010
  • O-ring – 90030
  • Seal – 41374
  • Seal – 40533
  • O-ring – 90015
  • O-ring – 901173
  • Wiper – 952370
  • Seal – 903066
  • Seal – 168260
  • Wiper – 953803
  • Seal – 953802
  • Seal – 953806
  • O-ring – 953810
  • O-ring – 94070
  • O-ring – 901124
  • O-ring – 901117
  • O-ring – 954215
  • O-ring – 90000
  • O-ring – 90035
  • Seal – 954341

15. Service Kit

  • Service kit – K15011
  • Membrane – 168291
  • Tool retaining pin – 168297
  • Lower tool bushing – 171139
  • Seal set – 170948

16. Service Kit 1B

  • Service kit – K1B5011
  • Membrane – 168291
  • Tool retaining pin – 168297
  • Seal set – 170948

17. Service Kit 2A Heavy Duty

  • Service kit – K2A5011
  • Pad – 168228
  • Buffer – 168232
  • Wear plate – 171044
  • Upper tool bushing – 168295

18. Service Kit 2D Heavy Duty Primary Breaking

  • Service kit – K2D5011
  • Pad – 168228
  • Buffer – 172586
  • Wear plate – 172652
  • Wear plate – 172651
  • Upper tool bushing – 168295

19. Greasing Block for Manual Greasing

  • Greasing block kit – 168833
  • Hose assembly – 171098
  • Hose – 954192
  • Sleeve – 153035
  • Insert – 153036
  • Nut – 951296
  • Connector – 951294
  • Body – 168824
  • Grease nipple – 90200
  • Hex. screw – 901542
  • Lock washer – 953503
  • Shield – 952093
  • Rubber bushing – 158147

20. Greasing Device Kit Heavy Duty

  • Greasing device retrofit kit – K60099
  • Greasing device RGS42 – 953345
  • Hose assembly – 171098
  • Sleeve – 153035
  • Insert – 153036
  • Hose – 954192
  • Nut – 951296
  • Rubber bushing – 158147
  • Shield – 952093
  • Hex. screw – 953794
  • Lock washer – 953503
  • Grease cartridge – 951370
  • Shield – 168032
  • Hex. socket screw – 902895
  • Lock washer – 90597
  • Connector – 951295

21. Greasing Device Heavy Duty

  • Greasing device RGS42 – 953345
  • Doser – 173573
  • Plug – 173574
  • Nut – 953330
  • Lock washer – 91038
  • O-ring – 953325
  • Adjusting screw – 953317
  • O-ring – 953326
  • O-ring – 953324
  • Spring – 953331
  • Piston – 173576
  • O-ring – 953322
  • Piston – 953329
  • Body – 173575
  • O-ring – 953323
  • Shim plate – 953321
  • Grease nipple – 90200
  • Plug – 953303
  • Locking plate – 953302
  • Body – 953335
  • Cartridge holder – 953334
  • Check valve – 951767
  • O-ring – 951416
  • O-ring – 951453
  • O-ring – 953300
  • O-ring – 953301
  • Guide ring – 950272
  • Seal – 953299
  • Spring housing – 953308
  • Spring – 950257
  • Piston – 953307
  • Nut – 953306
  • Lock plate – 951410
  • Hex. socket screw – 951421
  • Connector – 951294
  • Seal set for greasing device – 953385

22. Service Kit for Greasing Device RG540 Series

  • Service kit – 953385
  • Lock plate – 951410
  • Plug – 953303
  • Guide ring – 950272
  • Seal – 953299
  • O-ring – 953300
  • O-ring – 951453
  • O-ring – 953301
  • O-ring – 951416
  • O-ring – 953326
  • O-ring – 953325
  • O-ring – 953324
  • O-ring – 953323
  • O-ring – 953322
  • Shim plate – 953321
  • Spring – 953331
  • Piston – 953329
  • Lock washer – 91038
  • Grease nipple – 90200
  • Locking plate – 953302

23. Ramdata II Service Indicator

  • Ramdata II service indicator – 159143
  • Hex. socket screw – 91020
  • Lock washer – 91011

24. Tool Box

  • Tool box kit 11 – 953769
  • Tool box – 90665
  • Grease gun – 90202
  • Tool grease – 902045
  • Grease cartridge – 951370
  • Screwdriver – 6×150
  • Puller – 150020
  • Flange plug – 90444
  • Combination spanner – 12
  • Grease nipple – 953767
