MTB 65 Spare Parts List with Part Numbers

MTB 65 Hydraulic Breaker Parts

B1200B0101140 – MTB 65 Housing

B105100100003 – MTB 65 Top Cover Plate

B103410101140 – MTB 65 Top Buffer

B105000101140 – MTB 65 Top Buffer Guide Plate

D203590101140 – MTB 65 Wearing Plate

D203520101140 – MTB 65 Wearing Plate

D203510101140 – MTB 65 Wearing Plate

B103430101140 – MTB 65 Bottom Buffer

D2023000A1007 – MTB 65 Hex Bolt

D2025000A0020 – MTB 65 Washer

D2024000B0018 – MTB 65 Nut

D204010010002 – MTB 65 Rubber Cover

D204000010023 – MTB 65 Rubber Plug

B1100A0101140 – MTB 65 Breaker Body Assembly

B1200D0101140 – MTB 65 Housing

B1009A0101140 – MTB 65 Tie Rod Assembly

B100900101140 – MTB 65 Tie Rod

B102410101140 – MTB 65 Tir Rod Nut

B107000101140 – MTB 65 Valve Housing

B108200101140 – MTB 65 Accumulator Cover

B108100101140 – MTB 65 Accumulator Bottom

B100500101140 – MTB 65 Seal Housing

B100300101140 – MTB 65 Piston

B100200101140 – MTB 65 Cylinder

B143000101140 – MTB 65 Thrust Ring/Upper Bushing

B141000101140 – MTB 65 Lower Bushing

B100100101140 – MTB 65 Front Head

D201900101140 – MTB 65 Lock Washer

B101000101140 – MTB 65 Retainer

B102710010120 – MTB 65 Flange

B102600101140 – MTB 65 Distributor

B107420101150 – MTB 65 Operating Valve Guide

B107410101140 – MTB 65 Operating Valve Spool

B102210010004 – MTB 65 Operating Valve Spring Guide

D207440010008 – MTB 65 Operating Valve Shim Plate

B107450101140 – MTB 65 Operating Valve Cover

B102200010006 – MTB 65 Guide Pin

B102200010016 – MTB 65 Pin

B102200010034 – MTB 65 Pin

B102210010006 – MTB 65 Spring Guide Pin

B102200010057 – MTB 65 Pin

D201810010001 – MTB 65 Accumulator Cap

D202310010019 – MTB 65 Accumulator Mounting Bolt

D2023000G1011 – MTB 65 Accumulator Cover Bolt

D202320010001 – MTB 65 Accumulator Gas Bolt

D2023000G1001 – MTB 65 Socket Bolt

D2025000B0010 – MTB 65 Washer

D2018000A1006 – MTB 65 Plug

D2018000A1010 – MTB 65 Plug

D2018000A1020 – MTB 65 Plug

D204110010006 – MTB 65 Operating Valve Spring

D202800010006 – MTB 65 Grease Nipple

D204100010004 – MTB 65 Spring

D201850010010 – MTB 65 Air Breather Plug

D2018000B3602 – MTB 65 Plug (Female)

D202820010011 – MTB 65 Nipple

D204500017041 – MTB 65 Diaphragm

D204000010003 – MTB 65 Rubber Ring

D204000010020 – MTB 65 Rubber Plug

D204000010016 – MTB 65 Rubber Plug

D204320010111 – MTB 65 Wiper

D204310010234 – MTB 65 Seal

D204310010261 – MTB 65 Seal

D204320010130 – MTB 65 Wiper

D204380010251 – MTB 65 O-Ring

D204380010066 – MTB 65 O-Ring

D204380010133 – MTB 65 O-Ring

D204380010081 – MTB 65 O-Ring

D204380010219 – MTB 65 O-Ring

D204390010007 – MTB 65 Usit Ring

D204380010230 – MTB 65 O-Ring

D204380010359 – MTB 65 O-Ring

D204380010269 – MTB 65 O-Ring

D2042C0101140 – MTB 65 Seal Kit

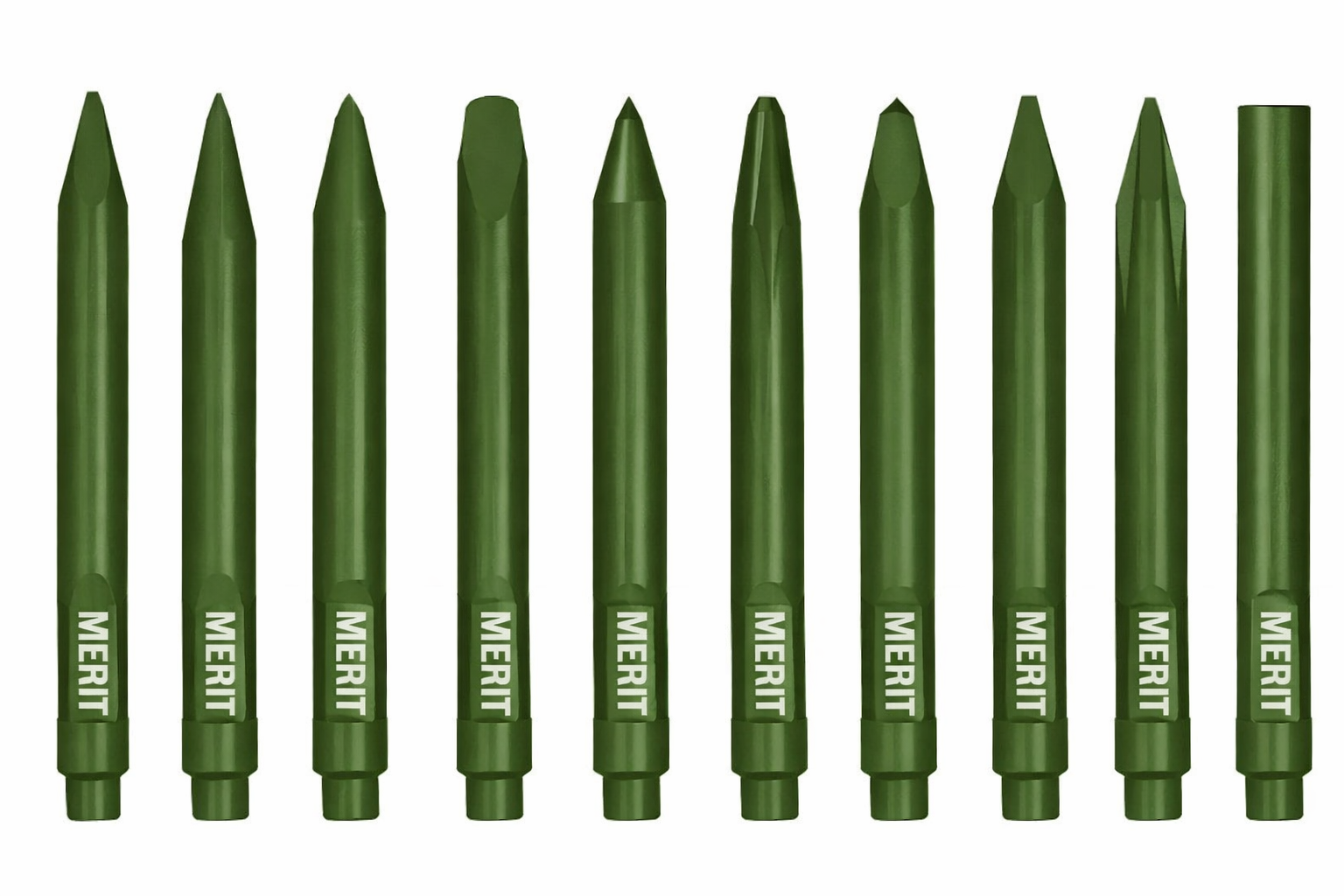

B103320101140 – MTB 65 Moil Point

B103310101140 – MTB 65 Chisel

B103330101140 – MTB 65 Blunt

B103340101140 – MTB 65 Pyramid

B103360101140 – MTB 65 X-Type

B103350101140 – MTB 65 G-Type

Looking for MTB 65 spare parts? Send us the part number for a quick quote.

MTB 95 Spare Parts List with Part Numbers

MTB 95 Hydraulic Breaker Parts

B1200B0101160 – MTB 95 Housing

B105100100003 – MTB 95 Top Cover Plate

B103410101150 – MTB 95 Top Buffer

B105000101150 – MTB 95 Top Buffer Guide Plate

D203590101150 – MTB 95 Wearing Plate

D203520101160 – MTB 95 Wearing Plate

D203510101160 – MTB 95 Wearing Plate

B103430101150 – MTB 95 Bottom Buffer

D2023000A1008 – MTB 95 Hex Bolt

D2025000A0020 – MTB 95 Washer

D2024000B0018 – MTB 95 Nut

D204010010002 – MTB 95 Rubber Cover

B103420101150 – MTB 95 Side Buffer

D204000010023 – MTB 95 Rubber Plug

D204000010058 – MTB 95 Retainer Plug

B1100A0101160 – MTB 95 Breaker Body Assembly

B1200D0101160 – MTB 95 Housing

B1009A0101160 – MTB 95 Tie Rod Assembly

B100900101150 – MTB 95 Tie Rod

B102410101150 – MTB 95 Tir Rod Nut

B107000101150 – MTB 95 Valve Housing

B108200101150 – MTB 95 Accumulator Cover

B108100101150 – MTB 95 Accumulator Bottom

B100500101160 – MTB 95 Seal Housing

B100300101160 – MTB 95 Piston

B100200101150 – MTB 95 Cylinder

B143000101150 – MTB 95 Thrust Ring/Upper Bushing

B141000101150 – MTB 95 Lower Bushing

B100100101160 – MTB 95 Front Head

D201900101150 – MTB 95 Lock Washer

B101000101160 – MTB 95 Retainer

B102710010120 – MTB 95 Flange

B102600101150 – MTB 95 Distributor

B107420101150 – MTB 95 Operating Valve Guide

B107410101140 – MTB 95 Operating Valve Spool

B102210010004 – MTB 95 Operating Valve Spring Guide

D207440010008 – MTB 95 Operating Valve Shim Plate

B107450101140 – MTB 95 Operating Valve Cover

B102200010006 – MTB 95 Guide Pin

B102200010058 – MTB 95 Pin

B102200010034 – MTB 95 Pin

B102210010006 – MTB 95 Spring Guide Pin

B102200010059 – MTB 95 Pin

B102200010167 – MTB 95 Pin

D201810010001 – MTB 95 Accumulator Cap

D202310010020 – MTB 95 Accumulator Mounting Bolt

D2023000G1012 – MTB 95 Accumulator Cover Bolt

D202320010001 – MTB 95 Accumulator Gas Bolt

D2023000G1001 – MTB 95 Socket Bolt

D2025000B0010 – MTB 95 Washer

D2018000A1006 – MTB 95 Plug

D2018000A1010 – MTB 95 Plug

D2018000A1020 – MTB 95 Plug

D204110010006 – MTB 95 Operating Valve Spring

D202800010006 – MTB 95 Grease Nipple

D204100010004 – MTB 95 Spring

D201850010010 – MTB 95 Air Breather Plug

D2018000B3602 – MTB 95 Plug (Female)

D202820010011 – MTB 95 Nipple

D204500019260 – MTB 95 Diaphragm

D204000010004 – MTB 95 Rubber Ring

D204000010024 – MTB 95 Rubber Plug

D204000010016 – MTB 95 Rubber Plug

D204320010121 – MTB 95 Wiper

D204310010247 – MTB 95 Seal

D204310010280 – MTB 95 Seal

D204320010138 – MTB 95 Wiper

D204380010252 – MTB 95 O-Ring

D204380010077 – MTB 95 O-Ring

D204380010133 – MTB 95 O-Ring

D204380010081 – MTB 95 O-Ring

D204380010219 – MTB 95 O-Ring

D204390010007 – MTB 95 Usit Ring

D204380010230 – MTB 95 O-Ring

D204380010380 – MTB 95 O-Ring

D204380010269 – MTB 95 O-Ring

D2042C0101150 – MTB 95 Seal Kit

B103310101160 – MTB 95 Moil Point

B103320101160 – MTB 95 Chisel

B103330101160 – MTB 95 Blunt

B103340101160 – MTB 95 Pyramid

B103360101160 – MTB 95 X-Type

B103350101160 – MTB 95 G-Type

Looking for MTB 95 spare parts? Send us the part number for a quick quote.

MTB 125 Spare Parts List with Part Numbers

MTB 125 Hydraulic Breaker Parts

B1200A0101180 – MTB 125 Housing

B105100100004 – MTB 125 Top Cover Plate

B103410101170 – MTB 125 Top Buffer

B105000101170 – MTB 125 Top Buffer Guide Plate

D203590101170 – MTB 125 Wearing Plate

D203520101180 – MTB 125 Wearing Plate

D203510101180 – MTB 125 Wearing Plate

D203530101170 – MTB 125 Wearing Plate

B103430101170 – MTB 125 Bottom Buffer

D2023000A1010 – MTB 125 Hex Bolt

D2025000A0026 – MTB 125 Washer

D2024000B0024 – MTB 125 Nut

D204010010002 – MTB 125 Rubber Cover

B103420101170 – MTB 125 Side Buffer

D204000010023 – MTB 125 Rubber Plug

D204000010027 – MTB 125 Rubber Plug

D204000010009 – MTB 125 Retainer Plug

D204000010040 – MTB 125 Rubber Plug

B1100A0101180 – MTB 125 Breaker Body Assembly

B1200D0101180 – MTB 125 Housing

D203550101180 – MTB 125 Wearing Plate

D203540101180 – MTB 125 Wearing Plate

B1009A0101180 – MTB 125 Tie Rod Assembly

B100900101180 – MTB 125 Tie Rod

B102410101170 – MTB 125 Tir Rod Nut

B107000101170 – MTB 125 Valve Housing

B108200101170 – MTB 125 Accumulator Cover

B108100101170 – MTB 125 Accumulator Bottom

B100500101180 – MTB 125 Seal Housing

B100300101180 – MTB 125 Piston

B100200101180 – MTB 125 Cylinder

B143000101180 – MTB 125 Thrust Ring

B142000101180 – MTB 125 Upper Bushing

B141070101180 – MTB 125 Lower Bushing

B100100101180 – MTB 125 Front Head

D201900101170 – MTB 125 Lock Washer

B101000101170 – MTB 125 Retainer

B102710010120 – MTB 125 Flange

B102710010125 – MTB 125 Flange

B107610101170 – MTB 125 Sleeve Cover-X

B107220101170 – MTB 125 Spool 2

B107100101170 – MTB 125 Main Spool

B107300101170 – MTB 125 Sleeve Guide

B107500101170 – MTB 125 Check Valve Housing

B107510101170 – MTB 125 Check Valve

B107540101170 – MTB 125 Check Valve Spring Guide

B107620101170 – MTB 125 Sleeve Cover-Y

B107210101170 – MTB 125 Spool 1

B107420101170 – MTB 125 Operating Valve Guide

B107410101170 – MTB 125 Operating Valve Spool

B102210010001 – MTB 125 Operating Valve Spring Guide

D207440010009 – MTB 125 Operating Valve Shim Plate

B107450101170 – MTB 125 Operating Valve Cover

B102200010001 – MTB 125 Guide Pin

B101010010001 – MTB 125 Wedge

B102200010017 – MTB 125 Pin

B102200010005 – MTB 125 Pin

B102210010006 – MTB 125 Spring Guide Pin

B102200010018 – MTB 125 Pin

D203000010001 – MTB 125 Snap Ring

D2025000B0014 – MTB 125 Washer

D201810010001 – MTB 125 Accumulator Cap

D202310010020 – MTB 125 Accumulator Mounting Bolt

D2023000G1016 – MTB 125 Accumulator Cover Bolt

D202320010001 – MTB 125 Accumulator Gas Bolt

D2023000G1001 – MTB 125 Socket Bolt

D2023000G1003 – MTB 125 Socket Bolt

D2018000A1006 – MTB 125 Plug

D2023000B1001 – MTB 125 Hex Bolt

D2025000B0012 – MTB 125 Washer

D204100011001 – MTB 125 Check Valve Spring

D2023000B1002 – MTB 125 Hex Bolt

D2018000A1010 – MTB 125 Plug

D2018000A1012 – MTB 125 Plug

D204110010008 – MTB 125 Operating Valve Spring

D202800010006 – MTB 125 Grease Nipple

D204100010005 – MTB 125 Spring

D201850010010 – MTB 125 Air Breather Plug

D2018000B3602 – MTB 125 Plug (Female)

D202820010011 – MTB 125 Nipple

D202820010020 – MTB 125 Nipple

D204500022761 – MTB 125 Diaphragm

D204000010020 – MTB 125 Rubber Plug

D204000010004 – MTB 125 Rubber Ring

D204000010016 – MTB 125 Rubber Plug

D204320010126 – MTB 125 Wiper

D204310010256 – MTB 125 Seal

D204310010384 – MTB 125 Guide Seal

D204310010280 – MTB 125 Seal

D204320010138 – MTB 125 Wiper

D204340010103 – MTB 125 Back-Up Ring

D204380010247 – MTB 125 O-Ring

D204380010269 – MTB 125 O-Ring

D204340010112 – MTB 125 Back-Up Ring

D204380010281 – MTB 125 O-Ring

D204340010118 – MTB 125 Back-Up Ring

D204380010210 – MTB 125 O-Ring

D204380010029 – MTB 125 O-Ring

D204340010025 – MTB 125 Back-Up Ring

D204380010242 – MTB 125 O-Ring

D204380010133 – MTB 125 O-Ring

D204390010002 – MTB 125 Steel O-Ring

D204380010147 – MTB 125 O-Ring

D204390010007 – MTB 125 Usit Ring

D204380010230 – MTB 125 O-Ring

D204380010248 – MTB 125 O-Ring

D204380010350 – MTB 125 O-Ring

D204340010162 – MTB 125 Back-Up Ring

D204380010373 – MTB 125 O-Ring

D204380010141 – MTB 125 O-Ring

D204340010056 – MTB 125 Back-Up Ring

D204380010349 – MTB 125 O-Ring

D204380010292 – MTB 125 O-Ring

D2042C0101180 – MTB 125 Seal Kit

B103320101180 – MTB 125 Moil Point

B103310101180 – MTB 125 Chisel

B103330101180 – MTB 125 Blunt

B103340101180 – MTB 125 Pyramid

B103360101180 – MTB 125 X-Type

B103350101180 – MTB 125 G-Type

Looking for MTB 125 spare parts? Send us the part number for a quick quote.

MTB 155 Spare Parts List with Part Numbers

MTB 155 Hydraulic Breaker Parts

B1200D0101200 – MTB 155 Housing

B105100100004 – MTB 155 Top Cover Plate

B103410101190 – MTB 155 Top Buffer

B105000101190 – MTB 155 Top Buffer Guide Plate

D203590101190 – MTB 155 Wearing Plate

D203530101200 – MTB 155 Wearing Plate

B103430101190 – MTB 155 Bottom Buffer

D2023000A1010 – MTB 155 Hex Bolt

D2025000A0026 – MTB 155 Washer

D2024000B0024 – MTB 155 Nut

D204010010002 – MTB 155 Rubber Cover

B103420101190 – MTB 155 Side Buffer

D204000010023 – MTB 155 Rubber Plug

D204000010027 – MTB 155 Rubber Plug

D204000010010 – MTB 155 Retainer Plug

D204000010040 – MTB 155 Rubber Plug

D203550101200 – MTB 155 Wearing Plate

D203540101200 – MTB 155 Wearing Plate

B1100A0101200 – MTB 155 Breaker Body Assembly

B1009A0101200 – MTB 155 Tie Rod Assembly

B100900101200 – MTB 155 Tie Rod

B102410101200 – MTB 155 Tir Rod Nut

B107000101190 – MTB 155 Valve Housing

B108200101190 – MTB 155 Accumulator Cover

B108100101190 – MTB 155 Accumulator Bottom

B100500101200 – MTB 155 Seal Housing

B100300101200 – MTB 155 Piston

B100200101200 – MTB 155 Cylinder

B143000101200 – MTB 155 Thrust Ring

B142000101200 – MTB 155 Upper Bushing

B141070101200 – MTB 155 Lower Bushing

B100100101200 – MTB 155 Front Head

D201900101190 – MTB 155 Lock Washer

B101000101190 – MTB 155 Retainer

B102710010125 – MTB 155 Flange

B107610101190 – MTB 155 Sleeve Cover-X

B107220101190 – MTB 155 Spool 2

B107100101190 – MTB 155 Main Spool

B107300101190 – MTB 155 Sleeve Guide

B107500101170 – MTB 155 Check Valve Housing

B107510101170 – MTB 155 Check Valve

B107540101170 – MTB 155 Check Valve Spring Guide

B107620101190 – MTB 155 Sleeve Cover-Y

B107210101190 – MTB 155 Spool 1

B107420101190 – MTB 155 Operating Valve Guide

B107410101190 – MTB 155 Operating Valve Spool

B102210010002 – MTB 155 Operating Valve Spring Guide

D207440010002 – MTB 155 Operating Valve Shim Plate

B107450101190 – MTB 155 Operating Valve Cover

B102200010003 – MTB 155 Guide Pin

B101010010001 – MTB 155 Wedge

B102200010004 – MTB 155 Pin

B102200010005 – MTB 155 Pin

B102210010006 – MTB 155 Spring Guide Pin

B102200010001 – MTB 155 Guide Pin

B102200010008 – MTB 155 Pin

B102200010009 – MTB 155 Pin

D203000010001 – MTB 155 Snap Ring

D2025000B0014 – MTB 155 Washer

D201810010001 – MTB 155 Accumulator Cap

D202310010003 – MTB 155 Accumulator Mounting Bolt

D2023000G1019 – MTB 155 Accumulator Cover Bolt

D202320010001 – MTB 155 Accumulator Gas Bolt

D2023000G1003 – MTB 155 Socket Bolt

D2018000A1006 – MTB 155 Plug

D2023000B1001 – MTB 155 Hex Bolt

D2025000B0012 – MTB 155 Washer

D204100011001 – MTB 155 Check Valve Spring

D2023000B1002 – MTB 155 Hex Bolt

D2018000A1020 – MTB 155 Plug

D2018000A1010 – MTB 155 Plug

D204110010001 – MTB 155 Operating Valve Spring

D202800010006 – MTB 155 Grease Nipple

D204100010006 – MTB 155 Spring

D201850010012 – MTB 155 Air Breather Plug

D2018000B4202 – MTB 155 Plug (Female)

D202820010003 – MTB 155 Nipple

D204500024063 – MTB 155 Diaphragm

D204000010020 – MTB 155 Rubber Plug

D204000010005 – MTB 155 Rubber Ring

D204000010024 – MTB 155 Rubber Plug

D204320010134 – MTB 155 Wiper

D204310010272 – MTB 155 Seal

D204310010030 – MTB 155 Guide Seal

D204310010030 – MTB 155 Seal

D204320010013 – MTB 155 Wiper

D204340010118 – MTB 155 Back-Up Ring

D204380010281 – MTB 155 O-Ring

D204380010292 – MTB 155 O-Ring

D204340010126 – MTB 155 Back-Up Ring

D204380010302 – MTB 155 O-Ring

D204340010131 – MTB 155 Back-Up Ring

D204380010210 – MTB 155 O-Ring

D204380010055 – MTB 155 O-Ring

D204340010032 – MTB 155 Back-Up Ring

D204380010242 – MTB 155 O-Ring

D204380010247 – MTB 155 O-Ring

D204380010203 – MTB 155 O-Ring

D204390010002 – MTB 155 Steel O-Ring

D204380010175 – MTB 155 O-Ring

D204390010007 – MTB 155 Usit Ring

D204380010248 – MTB 155 O-Ring

D204380010011 – MTB 155 O-Ring

D204340010004 – MTB 155 Back-Up Ring

D204380010012 – MTB 155 O-Ring

D204380010176 – MTB 155 O-Ring

D204340010067 – MTB 155 Back-Up Ring

D204380010010 – MTB 155 O-Ring

D204380010314 – MTB 155 O-Ring

D2042C0101190 – MTB 155 Seal Kit

B103320101200 – MTB 155 Moil Point

B103310101200 – MTB 155 Chisel

B103330101200 – MTB 155 Blunt

B103340101200 – MTB 155 Pyramid

B103360101200 – MTB 155 X-Type

B103350101200 – MTB 155 G-Type

Looking for MTB 155 spare parts? Send us the part number for a quick quote.

MTB 175 Spare Parts List with Part Numbers

MTB 175 Hydraulic Breaker Parts

B1200B0101220 – MTB 175 Housing

B105100100005 – MTB 175 Top Cover Plate

B103410101210 – MTB 175 Top Buffer

B105000101190 – MTB 175 Top Buffer Guide Plate

D203590101190 – MTB 175 Wearing Plate

D203520101220 – MTB 175 Wearing Plate

D203510101220 – MTB 175 Wearing Plate

D203530101230 – MTB 175 Wearing Plate

B103430101230 – MTB 175 Bottom Buffer

D2023000A1012 – MTB 175 Hex Bolt

D2025000A0030 – MTB 175 Washer

D2024000B0027 – MTB 175 Nut

D204010010002 – MTB 175 Rubber Cover

B103420101190 – MTB 175 Side Buffer

D204000010023 – MTB 175 Rubber Plug

D204000010027 – MTB 175 Rubber Plug

D204000010011 – MTB 175 Retainer Plug

D204000010040 – MTB 175 Rubber Plug

B1100A0101220 – MTB 175 Breaker Body Assembly

B1200D0101220 – MTB 175 Housing

D203550101220 – MTB 175 Wearing Plate

D203540101220 – MTB 175 Wearing Plate

B1009A0101220 – MTB 175 Tie Rod Assembly

B100900101220 – MTB 175 Tie Rod

B102410101220 – MTB 175 Tir Rod Nut

B107000101210 – MTB 175 Valve Housing

B108200101210 – MTB 175 Accumulator Cover

B108100101210 – MTB 175 Accumulator Bottom

B100500101220 – MTB 175 Seal Housing

B100300101220 – MTB 175 Piston

B100200101220 – MTB 175 Cylinder

B143000101220 – MTB 175 Thrust Ring

B142000101220 – MTB 175 Upper Bushing

B141070101220 – MTB 175 Lower Bushing

B100100101220 – MTB 175 Front Head

D201900101210 – MTB 175 Lock Washer

B101000101220 – MTB 175 Retainer

B102710010125 – MTB 175 Flange

B102710010132 – MTB 175 Flange

B107610101210 – MTB 175 Sleeve Cover-X

B107220101190 – MTB 175 Spool 2

B107100101190 – MTB 175 Main Spool

B107300101190 – MTB 175 Sleeve Guide

B107500101170 – MTB 175 Check Valve Housing

B107510101170 – MTB 175 Check Valve

B107540101170 – MTB 175 Check Valve Spring Guide

B107620101210 – MTB 175 Sleeve Cover-Y

B107210101190 – MTB 175 Spool 1

B107420101210 – MTB 175 Operating Valve Guide

B107410101210 – MTB 175 Operating Valve Spool

B102210010002 – MTB 175 Operating Valve Spring Guide

D207440010002 – MTB 175 Operating Valve Shim Plate

B107450101190 – MTB 175 Operating Valve Cover

B102200010003 – MTB 175 Guide Pin

B101010010001 – MTB 175 Wedge

B102200010020 – MTB 175 Pin

B102200010005 – MTB 175 Pin

B102210010006 – MTB 175 Spring Guide Pin

B102200010001 – MTB 175 Guide Pin

B102200010038 – MTB 175 Pin

B102200010049 – MTB 175 Pin

D203000010001 – MTB 175 Snap Ring

D2025000B0016 – MTB 175 Washer

D201810010001 – MTB 175 Accumulator Cap

D202310010021 – MTB 175 Accumulator Mounting Bolt

D2023000G1019 – MTB 175 Accumulator Cover Bolt

D202320010001 – MTB 175 Accumulator Gas Bolt

D2023000G1003 – MTB 175 Socket Bolt

D2023000G1005 – MTB 175 Socket Bolt

D2018000A1006 – MTB 175 Plug

D2023000B1001 – MTB 175 Hex Bolt

D2025000B0012 – MTB 175 Washer

D204100011001 – MTB 175 Check Valve Spring

D2023000B1003 – MTB 175 Hex Bolt

D2018000A1020 – MTB 175 Plug

D2018000A1010 – MTB 175 Plug

D204110010001 – MTB 175 Operating Valve Spring

D202800010006 – MTB 175 Grease Nipple

D204100010007 – MTB 175 Spring

D201850010012 – MTB 175 Air Breather Plug

D2018000B4202 – MTB 175 Plug (Female)

D202820010003 – MTB 175 Nipple

D202820010008 – MTB 175 Nipple

D204500024063 – MTB 175 Diaphragm

D204000010020 – MTB 175 Rubber Plug

D204000010006 – MTB 175 Rubber Ring

D204000010030 – MTB 175 Rubber Plug

D204320010009 – MTB 175 Wiper

D204310010020 – MTB 175 Seal

D204310010063 – MTB 175 Guide Seal

D204310010063 – MTB 175 Seal

D204320010027 – MTB 175 Wiper

D204340010118 – MTB 175 Back-Up Ring

D204380010281 – MTB 175 O-Ring

D204380010292 – MTB 175 O-Ring

D204340010126 – MTB 175 Back-Up Ring

D204380010302 – MTB 175 O-Ring

D204340010131 – MTB 175 Back-Up Ring

D204380010210 – MTB 175 O-Ring

D204380010055 – MTB 175 O-Ring

D204340010032 – MTB 175 Back-Up Ring

D204380010242 – MTB 175 O-Ring

D204380010247 – MTB 175 O-Ring

D204380010203 – MTB 175 O-Ring

D204390010002 – MTB 175 Steel O-Ring

D204380010200 – MTB 175 O-Ring

D204390010007 – MTB 175 Usit Ring

D204380010248 – MTB 175 O-Ring

D204380010283 – MTB 175 O-Ring

D204380010011 – MTB 175 O-Ring

D204340010028 – MTB 175 Back-Up Ring

D204380010069 – MTB 175 O-Ring

D204380010199 – MTB 175 O-Ring

D204340010076 – MTB 175 Back-Up Ring

D204380010010 – MTB 175 O-Ring

D204380010314 – MTB 175 O-Ring

D2042C0101220 – MTB 175 Seal Kit

B103320101220 – MTB 175 Moil Point

B103310101220 – MTB 175 Chisel

B103330101220 – MTB 175 Blunt

B103340101220 – MTB 175 Pyramid

B103360101220 – MTB 175 X-Type

B103350101220 – MTB 175 G-Type

Looking for MTB 175 spare parts? Send us the part number for a quick quote.

MTB 215 Spare Parts List with Part Numbers

MTB 215 Hydraulic Breaker Parts

B1200B0101240 – MTB 215 Housing

B105100100005 – MTB 215 Top Cover Plate

B103410101230 – MTB 215 Top Buffer

B105000101190 – MTB 215 Top Buffer Guide Plate

D203590101190 – MTB 215 Wearing Plate

D203520101240 – MTB 215 Wearing Plate

D203510101240 – MTB 215 Wearing Plate

D203530101250 – MTB 215 Wearing Plate

B103430101250 – MTB 215 Bottom Buffer

D2023000A1013 – MTB 215 Hex Bolt

D2025000A0030 – MTB 215 Washer

D2024000B0027 – MTB 215 Nut

D204010010002 – MTB 215 Rubber Cover

B103420101190 – MTB 215 Side Buffer

D204000010023 – MTB 215 Rubber Plug

D204000010027 – MTB 215 Rubber Plug

D204000010012 – MTB 215 Retainer Plug

D204000010040 – MTB 215 Rubber Plug

B1100A0101240 – MTB 215 Breaker Body Assembly

B1200D0101240 – MTB 215 Housing

D203550101240 – MTB 215 Wearing Plate

D203540101240 – MTB 215 Wearing Plate

B1009A0101240 – MTB 215 Tie Rod Assembly

B100900101240 – MTB 215 Tie Rod

B102410101250 – MTB 215 Tir Rod Nut

B107000101210 – MTB 215 Valve Housing

B108200101230 – MTB 215 Accumulator Cover

B108100101230 – MTB 215 Accumulator Bottom

B100500101240 – MTB 215 Seal Housing

B100300101240 – MTB 215 Piston

B100200101240 – MTB 215 Cylinder

B143000101240 – MTB 215 Thrust Ring

B142000101240 – MTB 215 Upper Bushing

B141070101240 – MTB 215 Lower Bushing

B100100101240 – MTB 215 Front Head

D201900101210 – MTB 215 Lock Washer

B101000101250 – MTB 215 Retainer

B102710010125 – MTB 215 Flange

B102710010132 – MTB 215 Flange

B107610101210 – MTB 215 Sleeve Cover-X

B107220101190 – MTB 215 Spool 2

B107100101190 – MTB 215 Main Spool

B107300101190 – MTB 215 Sleeve Guide

B107500101170 – MTB 215 Check Valve Housing

B107510101170 – MTB 215 Check Valve

B107540101170 – MTB 215 Check Valve Spring Guide

B107620101210 – MTB 215 Sleeve Cover-Y

B107210101190 – MTB 215 Spool 1

B107420101210 – MTB 215 Operating Valve Guide

B107410101210 – MTB 215 Operating Valve Spool

B102210010002 – MTB 215 Operating Valve Spring Guide

D207440010002 – MTB 215 Operating Valve Shim Plate

B107450101190 – MTB 215 Operating Valve Cover

B102200010003 – MTB 215 Guide Pin

B101010010001 – MTB 215 Wedge

B102200010021 – MTB 215 Pin

B102200010005 – MTB 215 Pin

B102210010006 – MTB 215 Spring Guide Pin

B102200010001 – MTB 215 Guide Pin

B102200010040 – MTB 215 Pin

B102200010050 – MTB 215 Pin

D203000010001 – MTB 215 Snap Ring

D2025000B0016 – MTB 215 Washer

D201810010001 – MTB 215 Accumulator Cap

D202310010022 – MTB 215 Accumulator Mounting Bolt

D2023000G1019 – MTB 215 Accumulator Cover Bolt

D202320010001 – MTB 215 Accumulator Gas Bolt

D2023000G1003 – MTB 215 Socket Bolt

D2023000G1005 – MTB 215 Socket Bolt

D2018000A1006 – MTB 215 Plug

D2023000B1001 – MTB 215 Hex Bolt

D2025000B0012 – MTB 215 Washer

D204100011001 – MTB 215 Check Valve Spring

D2023000B1003 – MTB 215 Hex Bolt

D2018000A1020 – MTB 215 Plug

D2018000A1010 – MTB 215 Plug

D204110010001 – MTB 215 Operating Valve Spring

D202800010006 – MTB 215 Grease Nipple

D204100010007 – MTB 215 Spring

D201850010012 – MTB 215 Air Breather Plug

D2018000B4202 – MTB 215 Plug (Female)

D2018000B4502 – MTB 215 Plug (Female)

D202820010003 – MTB 215 Nipple

D202820010009 – MTB 215 Nipple

D204500026583 – MTB 215 Diaphragm

D204000010020 – MTB 215 Rubber Plug

D204000010006 – MTB 215 Rubber Ring

D204000010030 – MTB 215 Rubber Plug

D204320010019 – MTB 215 Wiper

D204310010044 – MTB 215 Seal

D204310010080 – MTB 215 Guide Seal

D204310010080 – MTB 215 Seal

D204320010036 – MTB 215 Wiper

D204340010118 – MTB 215 Back-Up Ring

D204380010281 – MTB 215 O-Ring

D204380010292 – MTB 215 O-Ring

D204340010126 – MTB 215 Back-Up Ring

D204380010302 – MTB 215 O-Ring

D204340010131 – MTB 215 Back-Up Ring

D204380010210 – MTB 215 O-Ring

D204380010069 – MTB 215 O-Ring

D204340010028 – MTB 215 Back-Up Ring

D204380010242 – MTB 215 O-Ring

D204380010247 – MTB 215 O-Ring

D204380010203 – MTB 215 O-Ring

D204390010002 – MTB 215 Steel O-Ring

D204380010200 – MTB 215 O-Ring

D204390010007 – MTB 215 Usit Ring

D204380010248 – MTB 215 O-Ring

D204380010283 – MTB 215 O-Ring

D204380010011 – MTB 215 O-Ring

D204340010032 – MTB 215 Back-Up Ring

D204380010055 – MTB 215 O-Ring

D204380010199 – MTB 215 O-Ring

D204340010076 – MTB 215 Back-Up Ring

D204380010010 – MTB 215 O-Ring

D204380010314 – MTB 215 O-Ring

D2042C0101240 – MTB 215 Seal Kit

B103320101240 – MTB 215 Moil Point

B103310101240 – MTB 215 Chisel

B103330101240 – MTB 215 Blunt

B103340101240 – MTB 215 Pyramid

B103360101240 – MTB 215 X-Type

B103350101240 – MTB 215 G-Type

Looking for MTB 215 spare parts? Send us the part number for a quick quote.

MTB 255 Spare Parts List with Part Numbers

MTB 255 Hydraulic Breaker Parts

B1200B0101260 – MTB 255 Housing

B105100100006 – MTB 255 Top Cover Plate

B103410101230 – MTB 255 Top Buffer

B105000101190 – MTB 255 Top Buffer Guide Plate

D203590101190 – MTB 255 Wearing Plate

D203520101250 – MTB 255 Wearing Plate

D203510101250 – MTB 255 Wearing Plate

D203530101250 – MTB 255 Wearing Plate

B103430101250 – MTB 255 Bottom Buffer

D2023000A1014 – MTB 255 Hex Bolt

D2025000A0039 – MTB 255 Washer

D2024000B0036 – MTB 255 Nut

D204010010003 – MTB 255 Rubber Cover

B103420101190 – MTB 255 Side Buffer

D204000010023 – MTB 255 Rubber Plug

D204000010027 – MTB 255 Rubber Plug

D204000010012 – MTB 255 Retainer Plug

D204000010040 – MTB 255 Rubber Plug

B1100A0101260 – MTB 255 Breaker Body Assembly

B1200D0101260 – MTB 255 Housing

D203550101250 – MTB 255 Wearing Plate

D203540101250 – MTB 255 Wearing Plate

B1009A0101250 – MTB 255 Tie Rod Assembly

B100900101250 – MTB 255 Tie Rod

B102410101250 – MTB 255 Tir Rod Nut

B107000101210 – MTB 255 Valve Housing

B108200101230 – MTB 255 Accumulator Cover

B108100101230 – MTB 255 Accumulator Bottom

B100500101260 – MTB 255 Seal Housing

B100300101260 – MTB 255 Piston

B100200101250 – MTB 255 Cylinder

B143000101250 – MTB 255 Thrust Ring

B142000101250 – MTB 255 Upper Bushing

B141050101250 – MTB 255 Lower Bushing

B100100101250 – MTB 255 Front Head

D201900101210 – MTB 255 Lock Washer

B101000101250 – MTB 255 Retainer

B102710010125 – MTB 255 Flange

B102710010132 – MTB 255 Flange

B107610101210 – MTB 255 Sleeve Cover-X

B107220101190 – MTB 255 Spool 2

B107100101250 – MTB 255 Main Spool

B107300101190 – MTB 255 Sleeve Guide

B107500101170 – MTB 255 Check Valve Housing

B107510101170 – MTB 255 Check Valve

B107540101170 – MTB 255 Check Valve Spring Guide

B107620101210 – MTB 255 Sleeve Cover-Y

B107210101190 – MTB 255 Spool 1

B107420101210 – MTB 255 Operating Valve Guide

B107410101210 – MTB 255 Operating Valve Spool

B102210010002 – MTB 255 Operating Valve Spring Guide

D207440010002 – MTB 255 Operating Valve Shim Plate

B107450101190 – MTB 255 Operating Valve Cover

B102200010003 – MTB 255 Guide Pin

B101010010001 – MTB 255 Wedge

B102200010021 – MTB 255 Pin

B102200010005 – MTB 255 Pin

B102210010006 – MTB 255 Spring Guide Pin

B102200010001 – MTB 255 Guide Pin

B102200010040 – MTB 255 Pin

B102200010050 – MTB 255 Pin

D203000010001 – MTB 255 Snap Ring

D2025000B0016 – MTB 255 Washer

D201810010001 – MTB 255 Accumulator Cap

D202310010022 – MTB 255 Accumulator Mounting Bolt

D2023000G1019 – MTB 255 Accumulator Cover Bolt

D202320010001 – MTB 255 Accumulator Gas Bolt

D2023000G1003 – MTB 255 Socket Bolt

D2023000G1005 – MTB 255 Socket Bolt

D2018000A1006 – MTB 255 Plug

D2023000B1001 – MTB 255 Hex Bolt

D2025000B0012 – MTB 255 Washer

D204100011001 – MTB 255 Check Valve Spring

D2023000B1003 – MTB 255 Hex Bolt

D2018000A1020 – MTB 255 Plug

D2018000A1010 – MTB 255 Plug

D204110010001 – MTB 255 Operating Valve Spring

D202800010006 – MTB 255 Grease Nipple

D204100010007 – MTB 255 Spring

D201850010012 – MTB 255 Air Breather Plug

D2018000B4202 – MTB 255 Plug (Female)

D2018000B4502 – MTB 255 Plug (Female)

D202820010003 – MTB 255 Nipple

D202820010009 – MTB 255 Nipple

D204500026583 – MTB 255 Diaphragm

D204000010020 – MTB 255 Rubber Plug

D204000010006 – MTB 255 Rubber Ring

D204000010030 – MTB 255 Rubber Plug

D204320010025 – MTB 255 Wiper

D204310010055 – MTB 255 Seal

D204310010096 – MTB 255 Guide Seal

D204310010096 – MTB 255 Seal

D204320010042 – MTB 255 Wiper

D204340010118 – MTB 255 Back-Up Ring

D204380010281 – MTB 255 O-Ring

D204380010292 – MTB 255 O-Ring

D204340010126 – MTB 255 Back-Up Ring

D204380010302 – MTB 255 O-Ring

D204340010131 – MTB 255 Back-Up Ring

D204380010210 – MTB 255 O-Ring

D204380010069 – MTB 255 O-Ring

D204340010028 – MTB 255 Back-Up Ring

D204380010242 – MTB 255 O-Ring

D204380010247 – MTB 255 O-Ring

D204380010203 – MTB 255 O-Ring

D204390010002 – MTB 255 Steel O-Ring

D204380010200 – MTB 255 O-Ring

D204390010007 – MTB 255 Usit Ring

D204380010248 – MTB 255 O-Ring

D204380010283 – MTB 255 O-Ring

D204380010011 – MTB 255 O-Ring

D204340010032 – MTB 255 Back-Up Ring

D204380010055 – MTB 255 O-Ring

D204380010199 – MTB 255 O-Ring

D204340010076 – MTB 255 Back-Up Ring

D204380010010 – MTB 255 O-Ring

D204380010314 – MTB 255 O-Ring

D2042C0101250 – MTB 255 Seal Kit

B103320101260 – MTB 255 Moil Point

B103310101260 – MTB 255 Chisel

B103330101260 – MTB 255 Blunt

B103340101260 – MTB 255 Pyramid

B103360101260 – MTB 255 X-Type

B103350101260 – MTB 255 G-Type

Looking for MTB 255 spare parts? Send us the part number for a quick quote.

MTB 285 Spare Parts List with Part Numbers

MTB 285 Hydraulic Breaker Parts

B1200B0101290 – MTB 285 Housing

B105100100006 – MTB 285 Top Cover Plate

B103410101270 – MTB 285 Top Buffer

B105000101270 – MTB 285 Top Buffer Guide Plate

D203590101270 – MTB 285 Wearing Plate

D203520101290 – MTB 285 Wearing Plate

D203510101290 – MTB 285 Wearing Plate

D203530101270 – MTB 285 Wearing Plate

B103430101270 – MTB 285 Bottom Buffer

D2023000A1014 – MTB 285 Hex Bolt

D2025000A0039 – MTB 285 Washer

D2024000B0036 – MTB 285 Nut

D204010010003 – MTB 285 Rubber Cover

B103420101270 – MTB 285 Side Buffer

D204000010023 – MTB 285 Rubber Plug

D204000010027 – MTB 285 Rubber Plug

D204000010014 – MTB 285 Retainer Plug

D204000010040 – MTB 285 Rubber Plug

B1100A0101290 – MTB 285 Breaker Body Assembly

B1200D0101290 – MTB 285 Housing

D203550101290 – MTB 285 Wearing Plate

D203540101290 – MTB 285 Wearing Plate

B1009A0101290 – MTB 285 Tie Rod Assembly

B100900101290 – MTB 285 Tie Rod

B102410101290 – MTB 285 Tir Rod Nut

B107000101290 – MTB 285 Valve Housing

B108200101280 – MTB 285 Accumulator Cover

B108100101280 – MTB 285 Accumulator Bottom

B100500101290 – MTB 285 Seal Housing

B100300101290 – MTB 285 Piston

B100200101290 – MTB 285 Cylinder

B143000101290 – MTB 285 Thrust Ring

B142000101290 – MTB 285 Upper Bushing

B141060101290 – MTB 285 Lower Bushing

B100100101290 – MTB 285 Front Head

D201900101210 – MTB 285 Lock Washer

B101000101290 – MTB 285 Retainer

B102710010125 – MTB 285 Flange

B102710010132 – MTB 285 Flange

B107610101280 – MTB 285 Sleeve Cover-X

B107220101280 – MTB 285 Spool 2

B107100101280 – MTB 285 Main Spool

B107300101290 – MTB 285 Sleeve Guide

B107500101280 – MTB 285 Check Valve Housing

B107510101280 – MTB 285 Check Valve

B107540101280 – MTB 285 Check Valve Spring Guide

B107620101280 – MTB 285 Sleeve Cover-Y

B107210101280 – MTB 285 Spool 1

B107420101280 – MTB 285 Operating Valve Guide

B107410101280 – MTB 285 Operating Valve Spool

B102210010005 – MTB 285 Operating Valve Spring Guide

D207440010004 – MTB 285 Operating Valve Shim Plate

B107450101280 – MTB 285 Operating Valve Cover

B102200010003 – MTB 285 Guide Pin

B101010010001 – MTB 285 Wedge

B102200010022 – MTB 285 Pin

B102200010035 – MTB 285 Pin

B102210010006 – MTB 285 Spring Guide Pin

B102200010001 – MTB 285 Guide Pin

B102200010050 – MTB 285 Pin

D203000010002 – MTB 285 Snap Ring

D2025000B0020 – MTB 285 Washer

D201810010001 – MTB 285 Accumulator Cap

D202310010023 – MTB 285 Accumulator Mounting Bolt

D2023000G1020 – MTB 285 Accumulator Cover Bolt

D202320010001 – MTB 285 Accumulator Gas Bolt

D2023000G1003 – MTB 285 Socket Bolt

D2023000G1005 – MTB 285 Socket Bolt

D2018000A1006 – MTB 285 Plug

D2023000B1004 – MTB 285 Hex Bolt

D2025000B0016 – MTB 285 Washer

D204100011002 – MTB 285 Check Valve Spring

D2023000B1005 – MTB 285 Hex Bolt

D2018000A1010 – MTB 285 Plug

D2018000A1025 – MTB 285 Plug

D2018000A1012 – MTB 285 Plug

D204110010003 – MTB 285 Operating Valve Spring

D202800010006 – MTB 285 Grease Nipple

D204100010008 – MTB 285 Spring

D201850010012 – MTB 285 Air Breather Plug

D2018000B4202 – MTB 285 Plug (Female)

D2018000B4502 – MTB 285 Plug (Female)

D202820010003 – MTB 285 Nipple

D202820010009 – MTB 285 Nipple

D204500026583 – MTB 285 Diaphragm

D204000010020 – MTB 285 Rubber Plug

D204000010006 – MTB 285 Rubber Ring

D204000010030 – MTB 285 Rubber Plug

D204320010029 – MTB 285 Wiper

D204310010064 – MTB 285 Seal

D204310010389 – MTB 285 Guide Seal

D204310010106 – MTB 285 Seal

D204320010048 – MTB 285 Wiper

D204340010131 – MTB 285 Back-Up Ring

D204380010302 – MTB 285 O-Ring

D204380010314 – MTB 285 O-Ring

D204340010138 – MTB 285 Back-Up Ring

D204380010320 – MTB 285 O-Ring

D204340010141 – MTB 285 Back-Up Ring

D204380010210 – MTB 285 O-Ring

D204380010089 – MTB 285 O-Ring

D204340010045 – MTB 285 Back-Up Ring

D204380010281 – MTB 285 O-Ring

D204380010286 – MTB 285 O-Ring

D204380010203 – MTB 285 O-Ring

D204390010002 – MTB 285 Steel O-Ring

D204310010393 – MTB 285 Guide Seal

D204380010208 – MTB 285 O-Ring

D204390010007 – MTB 285 Usit Ring

D204380010248 – MTB 285 O-Ring

D204380010283 – MTB 285 O-Ring

D204380010031 – MTB 285 O-Ring

D204340010038 – MTB 285 Back-Up Ring

D204380010098 – MTB 285 O-Ring

D204380010209 – MTB 285 O-Ring

D204340010081 – MTB 285 Back-Up Ring

D204380010030 – MTB 285 O-Ring

D204380010339 – MTB 285 O-Ring

D2042C0101290 – MTB 285 Seal Kit

B103320101290 – MTB 285 Moil Point

B103310101290 – MTB 285 Chisel

B103330101290 – MTB 285 Blunt

B103340101290 – MTB 285 Pyramid

B103360101290 – MTB 285 X-Type

B103350101290 – MTB 285 G-Type

Looking for MTB 285 spare parts? Send us the part number for a quick quote.

MTB 365 Spare Parts List with Part Numbers

MTB 365 Hydraulic Breaker Parts

B1200B0101310 – MTB 365 Housing

B105100100006 – MTB 365 Top Cover Plate

B103410101270 – MTB 365 Top Buffer

B105000101270 – MTB 365 Top Buffer Guide Plate

D203590101270 – MTB 365 Wearing Plate

D203520101310 – MTB 365 Wearing Plate

D203510101310 – MTB 365 Wearing Plate

D203530101300 – MTB 365 Wearing Plate

B103430101300 – MTB 365 Bottom Buffer

D2023000A1014 – MTB 365 Hex Bolt

D2025000A0039 – MTB 365 Washer

D2024000B0036 – MTB 365 Nut

D204010010003 – MTB 365 Rubber Cover

B103420101270 – MTB 365 Side Buffer

D204000010026 – MTB 365 Rubber Plug

D204000010029 – MTB 365 Rubber Plug

D204000010015 – MTB 365 Retainer Plug

D204000010050 – MTB 365 Rubber Plug

B1100A0101310 – MTB 365 Breaker Body Assembly

B1200D0101310 – MTB 365 Housing

D203550101310 – MTB 365 Wearing Plate

D203540101310 – MTB 365 Wearing Plate

B1009A0101310 – MTB 365 Tie Rod Assembly

B100900101310 – MTB 365 Tie Rod

B102410101300 – MTB 365 Tir Rod Nut

B107000101310 – MTB 365 Valve Housing

B108200101300 – MTB 365 Accumulator Cover

B108100101300 – MTB 365 Accumulator Bottom

B100500101310 – MTB 365 Seal Housing

B100300101310 – MTB 365 Piston

B100200101310 – MTB 365 Cylinder

B143000101310 – MTB 365 Thrust Ring

B142000101310 – MTB 365 Upper Bushing

B141070101310 – MTB 365 Lower Bushing

B100100101310 – MTB 365 Front Head

D201900101300 – MTB 365 Lock Washer

B101000101310 – MTB 365 Retainer

B102710010132 – MTB 365 Flange

B107610101300 – MTB 365 Sleeve Cover-X

B107220101280 – MTB 365 Spool 2

B107100101300 – MTB 365 Main Spool

B107300101300 – MTB 365 Sleeve Guide

B107500101280 – MTB 365 Check Valve Housing

B107510101280 – MTB 365 Check Valve

B107540101280 – MTB 365 Check Valve Spring Guide

B107620101300 – MTB 365 Sleeve Cover-Y

B107210101280 – MTB 365 Spool 1

B107420101280 – MTB 365 Operating Valve Guide

B107410101280 – MTB 365 Operating Valve Spool

B102210010005 – MTB 365 Operating Valve Spring Guide

D207440010004 – MTB 365 Operating Valve Shim Plate

B107450101280 – MTB 365 Operating Valve Cover

B102200010003 – MTB 365 Guide Pin

B101010010001 – MTB 365 Wedge

B102200010023 – MTB 365 Pin

B102200010035 – MTB 365 Pin

B102210010006 – MTB 365 Spring Guide Pin

B102200010001 – MTB 365 Guide Pin

B102200010042 – MTB 365 Pin

B102200010046 – MTB 365 Pin

D203000010002 – MTB 365 Snap Ring

D2025000B0020 – MTB 365 Washer

D201810010001 – MTB 365 Accumulator Cap

D202310010024 – MTB 365 Accumulator Mounting Bolt

D2023000G1022 – MTB 365 Accumulator Cover Bolt

D202320010001 – MTB 365 Accumulator Gas Bolt

D2023000G1005 – MTB 365 Socket Bolt

D2018000A1006 – MTB 365 Plug

D2023000B1004 – MTB 365 Hex Bolt

D2025000B0016 – MTB 365 Washer

D204100011002 – MTB 365 Check Valve Spring

D2023000B1005 – MTB 365 Hex Bolt

D2018000A1010 – MTB 365 Plug

D2018000A1025 – MTB 365 Plug

D2018000A1012 – MTB 365 Plug

D204110010003 – MTB 365 Operating Valve Spring

D202800010006 – MTB 365 Grease Nipple

D204100010009 – MTB 365 Spring

D201850010012 – MTB 365 Air Breather Plug

D2018000B4202 – MTB 365 Plug (Female)

D2018000B4502 – MTB 365 Plug (Female)

D202820010008 – MTB 365 Nipple

D202820010009 – MTB 365 Nipple

D204500028082 – MTB 365 Diaphragm

D204000010020 – MTB 365 Rubber Plug

D204000010007 – MTB 365 Rubber Ring

D204000010035 – MTB 365 Rubber Plug

D204320010046 – MTB 365 Wiper

D204310010101 – MTB 365 Seal

D204310010390 – MTB 365 Guide Seal

D204310010125 – MTB 365 Seal

D204320010065 – MTB 365 Wiper

D204340010131 – MTB 365 Back-Up Ring

D204380010302 – MTB 365 O-Ring

D204380010314 – MTB 365 O-Ring

D204340010138 – MTB 365 Back-Up Ring

D204380010320 – MTB 365 O-Ring

D204340010141 – MTB 365 Back-Up Ring

D204380010210 – MTB 365 O-Ring

D204380010089 – MTB 365 O-Ring

D204340010045 – MTB 365 Back-Up Ring

D204380010281 – MTB 365 O-Ring

D204380010286 – MTB 365 O-Ring

D204380010203 – MTB 365 O-Ring

D204390010002 – MTB 365 Steel O-Ring

D204310010394 – MTB 365 Guide Seal

D204380010223 – MTB 365 O-Ring

D204390010007 – MTB 365 Usit Ring

D204380010283 – MTB 365 O-Ring

D204380010053 – MTB 365 O-Ring

D204380010116 – MTB 365 O-Ring

D204380010226 – MTB 365 O-Ring

D204340010093 – MTB 365 Back-Up Ring

D204380010054 – MTB 365 O-Ring

D204380010339 – MTB 365 O-Ring

D2042C0101300 – MTB 365 Seal Kit

B103320101310 – MTB 365 Moil Point

B103310101310 – MTB 365 Chisel

B103330101310 – MTB 365 Blunt

B103340101310 – MTB 365 Pyramid

B103360101310 – MTB 365 X-Type

B103350101310 – MTB 365 G-Type

Looking for MTB 365 spare parts? Send us the part number for a quick quote.

MTB 505 Spare Parts List with Part Numbers

MTB 505 Hydraulic Breaker Parts

B1200B0101330 – MTB 505 Housing

B105100100006 – MTB 505 Top Cover Plate

B103410101320 – MTB 505 Top Buffer

B105000101270 – MTB 505 Top Buffer Guide Plate

D203590101270 – MTB 505 Wearing Plate

D203520101330 – MTB 505 Wearing Plate

D203510101330 – MTB 505 Wearing Plate

D203530101330 – MTB 505 Wearing Plate

B103430101320 – MTB 505 Bottom Buffer

D2023000A1014 – MTB 505 Hex Bolt

D2025000A0039 – MTB 505 Washer

D2024000B0036 – MTB 505 Nut

D204010010003 – MTB 505 Rubber Cover

B103420101270 – MTB 505 Side Buffer

D204000010026 – MTB 505 Rubber Plug

D204000010029 – MTB 505 Rubber Plug

D204000010017 – MTB 505 Retainer Plug

D204000010050 – MTB 505 Rubber Plug

B1100A0101330 – MTB 505 Breaker Body Assembly

B1009A0101330 – MTB 505 Tie Rod Assembly

B100900101330 – MTB 505 Tie Rod

B102410101330 – MTB 505 Tir Rod Nut

B107000101330 – MTB 505 Valve Housing

B108200101330 – MTB 505 Accumulator Cover

B108100101330 – MTB 505 Accumulator Bottom

B100500101330 – MTB 505 Seal Housing

B100300101330 – MTB 505 Piston

B100200101330 – MTB 505 Cylinder

B143000101330 – MTB 505 Thrust Ring

B142000101330 – MTB 505 Upper Bushing

B141070101330 – MTB 505 Lower Bushing

B100100101330 – MTB 505 Front Head

D201900101300 – MTB 505 Lock Washer

B101000101330 – MTB 505 Retainer

B102710010132 – MTB 505 Flange

B107610101330 – MTB 505 Sleeve Cover-X

B107220101280 – MTB 505 Spool 2

B107100101330 – MTB 505 Main Spool

B107300101330 – MTB 505 Sleeve Guide

B107500101280 – MTB 505 Check Valve Housing

B107510101280 – MTB 505 Check Valve

B107540101280 – MTB 505 Check Valve Spring Guide

B107620101330 – MTB 505 Sleeve Cover-Y

B107210101280 – MTB 505 Spool 1

B107420101280 – MTB 505 Operating Valve Guide

B107410101280 – MTB 505 Operating Valve Spool

B102210010005 – MTB 505 Operating Valve Spring Guide

D207440010004 – MTB 505 Operating Valve Shim Plate

B107450101280 – MTB 505 Operating Valve Cover

B102200010003 – MTB 505 Guide Pin

B101010010001 – MTB 505 Wedge

B102200010024 – MTB 505 Pin

B102200010035 – MTB 505 Pin

B102210010006 – MTB 505 Spring Guide Pin

B102200010001 – MTB 505 Guide Pin

B102200010051 – MTB 505 Pin

D203000010002 – MTB 505 Snap Ring

D2025000B0020 – MTB 505 Washer

D201810010001 – MTB 505 Accumulator Cap

D202310010025 – MTB 505 Accumulator Mounting Bolt

D2023000G1023 – MTB 505 Accumulator Cover Bolt

D202320010001 – MTB 505 Accumulator Gas Bolt

D2023000G1005 – MTB 505 Socket Bolt

D2018000A1006 – MTB 505 Plug

D2023000B1004 – MTB 505 Hex Bolt

D2025000B0016 – MTB 505 Washer

D204100011002 – MTB 505 Check Valve Spring

D2023000B1005 – MTB 505 Hex Bolt

D2018000A1010 – MTB 505 Plug

D2018000A1025 – MTB 505 Plug

D2018000A1012 – MTB 505 Plug

D204110010003 – MTB 505 Operating Valve Spring

D202800010006 – MTB 505 Grease Nipple

D204100010009 – MTB 505 Spring

D201850010012 – MTB 505 Air Breather Plug

D2018000B4202 – MTB 505 Plug (Female)

D2018000B4502 – MTB 505 Plug (Female)

D202820010008 – MTB 505 Nipple

D202820010009 – MTB 505 Nipple

D204500029099 – MTB 505 Diaphragm

D204000010020 – MTB 505 Rubber Plug

D204000010007 – MTB 505 Rubber Ring

D204000010035 – MTB 505 Rubber Plug

D204000010024 – MTB 505 Rubber Plug

D204320010059 – MTB 505 Wiper

D204310010115 – MTB 505 Seal

D204310010391 – MTB 505 Guide Seal

D204310010133 – MTB 505 Seal

D204320010069 – MTB 505 Wiper

D204340010131 – MTB 505 Back-Up Ring

D204380010302 – MTB 505 O-Ring

D204380010314 – MTB 505 O-Ring

D204340010138 – MTB 505 Back-Up Ring

D204380010320 – MTB 505 O-Ring

D204340010141 – MTB 505 Back-Up Ring

D204380010210 – MTB 505 O-Ring

D204380010098 – MTB 505 O-Ring

D204340010048 – MTB 505 Back-Up Ring

D204380010281 – MTB 505 O-Ring

D204380010286 – MTB 505 O-Ring

D204380010203 – MTB 505 O-Ring

D204390010002 – MTB 505 Steel O-Ring

D204310010395 – MTB 505 Guide Seal

D204380010223 – MTB 505 O-Ring

D204390010007 – MTB 505 Usit Ring

D204380010283 – MTB 505 O-Ring

D204380010053 – MTB 505 O-Ring

D204340010045 – MTB 505 Back-Up Ring

D204380010116 – MTB 505 O-Ring

D204380010226 – MTB 505 O-Ring

D204340010093 – MTB 505 Back-Up Ring

D204380010054 – MTB 505 O-Ring

D204380010339 – MTB 505 O-Ring

D204380010232 – MTB 505 O-Ring

D204340010094 – MTB 505 Back-Up Ring

D2042C0101330 – MTB 505 Seal Kit

B103320101330 – MTB 505 Moil Point

B103310101330 – MTB 505 Chisel

B103330101330 – MTB 505 Blunt

B103340101330 – MTB 505 Pyramid

B103360101330 – MTB 505 X-Type

B103350101330 – MTB 505 G-Type

Looking for MTB 505 spare parts? Send us the part number for a quick quote.

MTB 705 Spare Parts List with Part Numbers

MTB 705 Hydraulic Breaker Parts

B1200B0101340 – MTB 705 Housing

B105100100007 – MTB 705 Top Cover Plate

B103410101340 – MTB 705 Top Buffer

B105000101340 – MTB 705 Top Buffer Guide Plate

D203590101340 – MTB 705 Wearing Plate

D203520101340 – MTB 705 Wearing Plate

D203510101340 – MTB 705 Wearing Plate

D203530101340 – MTB 705 Wearing Plate

B103430101340 – MTB 705 Bottom Buffer

D2023000A1016 – MTB 705 Hex Bolt

D2025000A0039 – MTB 705 Washer

D2024000B0036 – MTB 705 Nut

D204010010004 – MTB 705 Rubber Cover

B103420101340 – MTB 705 Side Buffer

D204000010029 – MTB 705 Rubber Plug

D204000010018 – MTB 705 Retainer Plug

D204000010050 – MTB 705 Rubber Plug

D204000010026 – MTB 705 Rubber Plug

B1100A0101340 – MTB 705 Breaker Body Assembly

B1200D0101340 – MTB 705 Housing

B105100100008 – MTB 705 Top Cover Plate

D203550101340 – MTB 705 Wearing Plate

D203540101340 – MTB 705 Wearing Plate

B1009A0101340 – MTB 705 Tie Rod Assembly

B100900101340 – MTB 705 Tie Rod

B102410101340 – MTB 705 Tir Rod Nut

B107000101340 – MTB 705 Valve Housing

B108200101340 – MTB 705 Accumulator Cover

B108100101340 – MTB 705 Accumulator Bottom

B100500101340 – MTB 705 Seal Housing

B100300101340 – MTB 705 Piston

B100200101340 – MTB 705 Cylinder

B143000101340 – MTB 705 Thrust Ring

B142000101340 – MTB 705 Upper Bushing

B141070101340 – MTB 705 Lower Bushing

B100100101340 – MTB 705 Front Head

D201900101340 – MTB 705 Lock Washer

B101000101340 – MTB 705 Retainer

B102710010038 – MTB 705 Flange

B102710010051 – MTB 705 Flange

B107610101340 – MTB 705 Sleeve Cover-X

B107220101340 – MTB 705 Spool 2

B107100101340 – MTB 705 Main Spool

B107300101340 – MTB 705 Sleeve Guide

B107500101350 – MTB 705 Check Valve Housing

B107510101350 – MTB 705 Check Valve

B107540101340 – MTB 705 Check Valve Spring Guide

B107620101340 – MTB 705 Sleeve Cover-Y

B107210101340 – MTB 705 Spool 1

B107420101350 – MTB 705 Operating Valve Guide

B107410101340 – MTB 705 Operating Valve Spool

B102210010007 – MTB 705 Operating Valve Spring Guide

D207440010005 – MTB 705 Operating Valve Shim Plate

B107450101340 – MTB 705 Operating Valve Cover

B102200010010 – MTB 705 Guide Pin

B101010010002 – MTB 705 Wedge

B102200010025 – MTB 705 Pin

B102200010036 – MTB 705 Pin

B102210010008 – MTB 705 Spring Guide Pin

B102200010001 – MTB 705 Guide Pin

B102200010043 – MTB 705 Pin

B102200010052 – MTB 705 Pin

D203000010003 – MTB 705 Snap Ring

D2025000B0020 – MTB 705 Washer

D201810010001 – MTB 705 Accumulator Cap

D202310010026 – MTB 705 Accumulator Mounting Bolt

D2023000G1023 – MTB 705 Accumulator Cover Bolt

D202320010001 – MTB 705 Accumulator Gas Bolt

D2023000G1010 – MTB 705 Socket Bolt

D2023000G1018 – MTB 705 Socket Bolt

D2018000A1006 – MTB 705 Plug

D2023000B1004 – MTB 705 Hex Bolt

D2025000B0016 – MTB 705 Washer

D204100011005 – MTB 705 Check Valve Spring

D2023000B1005 – MTB 705 Hex Bolt

D2018000A1010 – MTB 705 Plug

D2018000A1025 – MTB 705 Plug

D2018000A1012 – MTB 705 Plug

D204110010016 – MTB 705 Operating Valve Spring

D202800010006 – MTB 705 Grease Nipple

D204100010010 – MTB 705 Spring

D201850010012 – MTB 705 Air Breather Plug

D2018000B5202 – MTB 705 Plug (Female)

D202820010083 – MTB 705 Plug (Female)

D202820010081 – MTB 705 Nipple

D202820010082 – MTB 705 Nipple

D204500035060 – MTB 705 Diaphragm

D204000010020 – MTB 705 Rubber Plug

D204000010008 – MTB 705 Rubber Ring

D204000010035 – MTB 705 Rubber Plug

D204000010024 – MTB 705 Rubber Plug

D204320010071 – MTB 705 Wiper

D204310010138 – MTB 705 Seal

D204310010392 – MTB 705 Guide Seal

D204310010146 – MTB 705 Seal

D204320010076 – MTB 705 Wiper

D204340010148 – MTB 705 Back-Up Ring

D204380010339 – MTB 705 O-Ring

D204380010347 – MTB 705 O-Ring

D204340010152 – MTB 705 Back-Up Ring

D204380010349 – MTB 705 O-Ring

D204340010156 – MTB 705 Back-Up Ring

D204380010253 – MTB 705 O-Ring

D204380010140 – MTB 705 O-Ring

D204340010056 – MTB 705 Back-Up Ring

D204380010302 – MTB 705 O-Ring

D204380010314 – MTB 705 O-Ring

D204380010220 – MTB 705 O-Ring

D204390010003 – MTB 705 Steel O-Ring

D204310010396 – MTB 705 Guide Seal

D204380010245 – MTB 705 O-Ring

D204390010007 – MTB 705 Usit Ring

D204380010283 – MTB 705 O-Ring

D204380010306 – MTB 705 O-Ring

D204380010091 – MTB 705 O-Ring

D204340010058 – MTB 705 Back-Up Ring

D204380010167 – MTB 705 O-Ring

D204340010101 – MTB 705 Back-Up Ring

D204380010090 – MTB 705 O-Ring

D204380010359 – MTB 705 O-Ring

D2042C0101340 – MTB 705 Seal Kit

B103320101340 – MTB 705 Moil Point

B103310101340 – MTB 705 Chisel

B103330101340 – MTB 705 Blunt

B103340101340 – MTB 705 Pyramid

B103360101340 – MTB 705 X-Type

B103350101340 – MTB 705 G-Type

Looking for MTB 705 spare parts? Send us the part number for a quick quote.

Bu Blogda Ara

Hydraulic Hammer Rock Breaker

meritautomotive.com

MTB 65 Spare Parts List with Part Numbers

MTB 65 Hydraulic Breaker Parts

MTB 95 Spare Parts List with Part Numbers

MTB 95 Hydraulic Breaker Parts

MTB 125 Spare Parts List with Part Numbers

MTB 125 Hydraulic Breaker Parts

MTB 155 Spare Parts List with Part Numbers

MTB 155 Hydraulic Breaker Parts

MTB 175 Spare Parts List with Part Numbers

MTB 175 Hydraulic Breaker Parts

MTB 215 Spare Parts List with Part Numbers

MTB 215 Hydraulic Breaker Parts

MTB 255 Spare Parts List with Part Numbers

MTB 255 Hydraulic Breaker Parts

MTB 285 Spare Parts List with Part Numbers

MTB 285 Hydraulic Breaker Parts

MTB 365 Spare Parts List with Part Numbers

MTB 365 Hydraulic Breaker Parts

MTB 505 Spare Parts List with Part Numbers

MTB 505 Hydraulic Breaker Parts

MTB 705 Spare Parts List with Part Numbers

MTB 705 Hydraulic Breaker Parts

Yorumlar

Yorum Gönder

Bu blogdaki popüler yayınlar

The Importance of Chuck Housing in Hydraulic Hammers and Why MERIT is the World Leader

MERIT: Votre Partenaire de Confiance pour les Pièces de Rechange pour Brise-Roche Hydraulique

🇹🇷 تركيا.. الملاذ الآمن الذي يضمن استمرارية الإمداد العالمي
